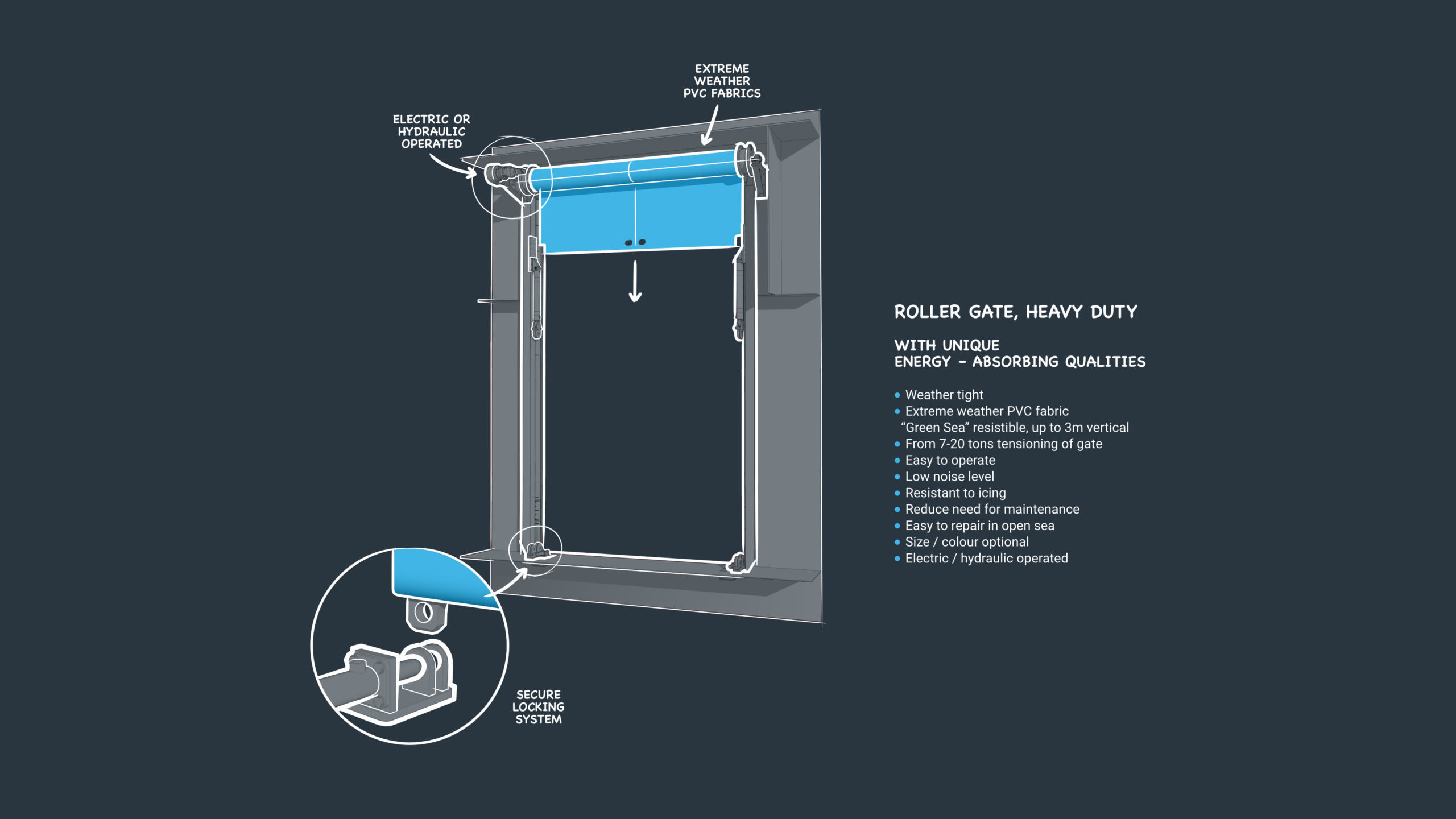

The PVC Roller Door is a perfect choice for shipside installation, made for harsh environment. This is a lightweight and low-noise alternative to traditional steel or aluminium gates.

The PVC Roller Door is weather tight and “Green Sea” resistible up to 3m vertical. Its hydraulic operated and there is from 7-20 tons tension of the door.

In the event of high loads caused by wind, waves, or a combination of both acting on the tarpaulin, the hydraulic cylinder rods will retract and pressurized fluid will be transferred to the accumulators. This allows the tension cables to temporarily release and absorb the load. Once the external forces decrease, the cylinders automatically re-tension the tarpaulin to its original pre-tensioned position.

Plany PVC Roller Doors reduce the risk of downtime in the event of damage to the door. The tarpaulin can be removed or replaced. It can also be replaced while the vessel remains in operation.

The PVC fabric is made for marine environments and is UV and temperature (-30→+70) resistant. The surface is glossy to prevent ice to build up. Breaking strength of the tarpaulin is 10000N/5cm (approx. 1 ton)
